HQ Electronics is recognized as the go-to solution for reliable multilayer PCBs that last.Over 10 Years of In-house PCB Manufacturing Expertise.
Reliability at it’s core Strict quality control and advanced equipment maximize your product’s performance and lifetime out in the field.
High Speed, Low Prices Reliability doesn’t have to come at a cost. HQ Electronics’ Printed Circuit Boards are competitively priced and have stable lead times.
Advanced Capabilities Up to 32 copper layers, HDI blind/buried via designs, impedance control, custom stack-ups and more
DFM from the Experts Optimize your design for performance, longevity and cost with HQ Electronics’ in-depth DFM review and software.
Dedicated factories for quickturn and volume PCB production.

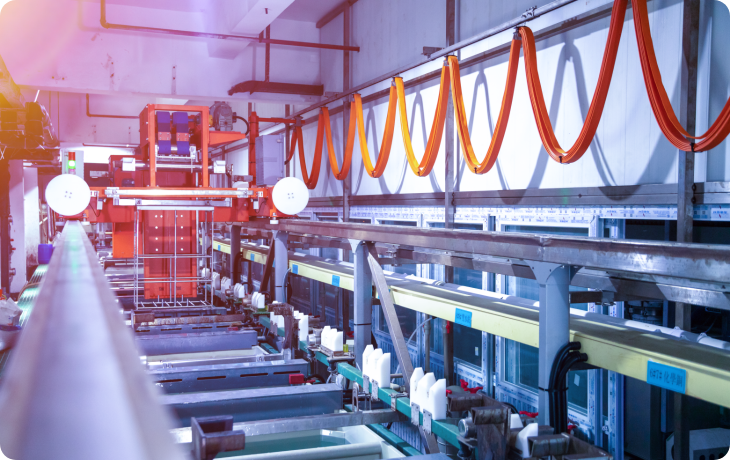

We only use high-end materials and equipment from across the globe including Taiwanese electroplating lines, digital ink-jet silkscreen printers, German flying probe testers, Shengyi A-grade copper cores and Sun solder mask oils.
Do what it takes to get your product to market on-time
| Instant Quote | Inquire for a quotation | |
|---|---|---|
| Circuit Layers | Up to 20 layers | Up to 32 layers |
| HDI Capability | Up to HDI III designs | Inquire |
| Materials | Shengyi/KB cores and laminates up to TG170 | Rogers, flex, rigid-flex, aluminum, copper core and more |
| Surface Finishes | Leaded/Lead-free HASL, ENIG and OSP | Inquire |
| Board Thickness | 0.6 to 3.2 mm | Inquire |
| Copper Thickness | 4 oz | Inquire |
| Smallest Trace width/spacing | 3.5/3.5 mil | 2.5/2.5 mil |
| Drill and Via Capabilities | Blind/buried vias, Microvias, Via-in-pad filling and capping (POFV) and castellated holes, 10:1 aspect ratio | Counterbore, countersunk holes, z-axis milling and more |
| PCB Solder Mask Color | Green, blue, red, yellow, white, black,matte black | Inquire |
| Extras | Custom stack-up, impedance control, microsection report, UL Marking, beveled/chamferred edges, edge-plating and more | Inquire |
| Production Time | From 24 hours | Inquire |
